15 Popular Types of Wood Joints and When to Use Them

Wood joints are connections that hold pieces of wood together. They come in different types, varying in strength, appearance, and complexity, providing plenty of options for any project.

Understanding the various types of wood joinery is key to choosing the right technique for your projects. This guide breaks down the main types of wood joints to get you started.

Types of Wood Joints

Basic Joints

These joints are generally simple but not very strong, often requiring reinforcement with adhesives or fasteners like nails, screws, or dowels.

1. Basic Butt Joint

A basic butt joint places one board’s end against another at a right angle with no shaping. Because it has a small glue surface, it is the weakest joint and is usually reinforced with screws or nails. A butt joint is common in simple framing and quick, temporary projects.

2. Miter Butt Joint

A miter joint is a variation of the basic butt joint, where two pieces of wood meet at 45 degrees to form a 90-degree corner. It hides the end grain for a clean, seamless look.

Because it is weak on its own, the joint is usually reinforced with screws or nails. Miter joints are commonly used for picture frames and corner trim.

3. Edge Joint

Edge joints join boards along their long edges to widen a surface. They are glued—sometimes reinforced with tongue-and-groove or biscuit joints—and require precise edge matching.

Since edge joints rely on glue rather than nails or screws, their strength depends on proper surface preparation and clamping. Poor workmanship can lead to failure under heavy loads.

4. Pocket-Hole Joint

A pocket joint uses an angled, pre-drilled hole to join boards with a screw. This process relies on precise drilling, usually done with a commercial jig.

Pocket joints are commonly used for cabinet face frames and other projects where moderate strength and fast assembly are acceptable.

RELATED: 10 Best Types of Wood for Furniture – Buyer’s Guide

Interlocking Joints

These joints take advantage of the natural form of wood to produce a strong connection, typically relying on glue rather than fasteners such as nails, screws, or dowels.

5. Mortise and Tenon Joint

This is one of the strongest joints created by fitting a tenon into a mortise. The mortise is a cut-out section in one piece of wood, while the tenon is a projection on the end of another.

A mortise-and-tenon joint can be held with friction, glue, or reinforced with nails or screws. It is commonly used in furniture like bed frames and table legs and in home construction.

6. Box Joint (Finger Joint)

A box joint, also called a finger joint, is created by cutting evenly spaced square notches in one piece of wood and matching notches in another, which interlock to form the joint.

When glued, box joints are very strong due to their large contact area, and they can be reinforced with nails for extra durability. This simple, sturdy joint is ideal for boxes and drawers.

7. Dado Joint

A dado is a U-shaped, three-sided groove cut into one piece of wood to hold another at a right angle. Common in furniture making, it is used for shelves, cabinets, and drawer dividers.

A dado joint is secured with glue and sometimes reinforced with nails or screws, providing moderate strength and a reliable connection for shelving, cabinets, and drawer dividers.

8. Rabbet Joint

A rabbet joint is like a dado but cut along the edge of a board, forming an L-shape instead of a U-shape. It resembles a basic butt joint but hides the end grain of the adjoining piece.

The removed material increases gluing surface and adds rigidity. Without screws or nails, it provides moderate strength and is commonly used in cabinetry and furniture construction.

9. Through Dovetail Joint

A through dovetail joint features tapered pins and tails that interlock, creating a self-locking, strong connection visible from both sides.

The tapered design produces an attractive pattern and provides exceptional strength. It can be reinforced with glue and requires no nails or screws.

This joint is ideal for furniture, drawers, and boxes that require superior durability.

10. Half-Blind Dovetail Joint

A half-blind dovetail joint is an advanced version of the standard dovetail, designed to keep one side hidden while maintaining the exceptional strength of the tapered design.

This wood joint can be reinforced with glue and requires no nails or screws. It is commonly used in drawers, where the front should conceal the joint.

11. Sliding Dovetail

A sliding dovetail combines the features of a dovetail and a dado joint. It consists of a three-sided channel, similar to a dado, but with a tapered shape like a dovetail.

This design provides greater strength and a self-locking fit compared to a standard dado, while still serving many of the same purposes.

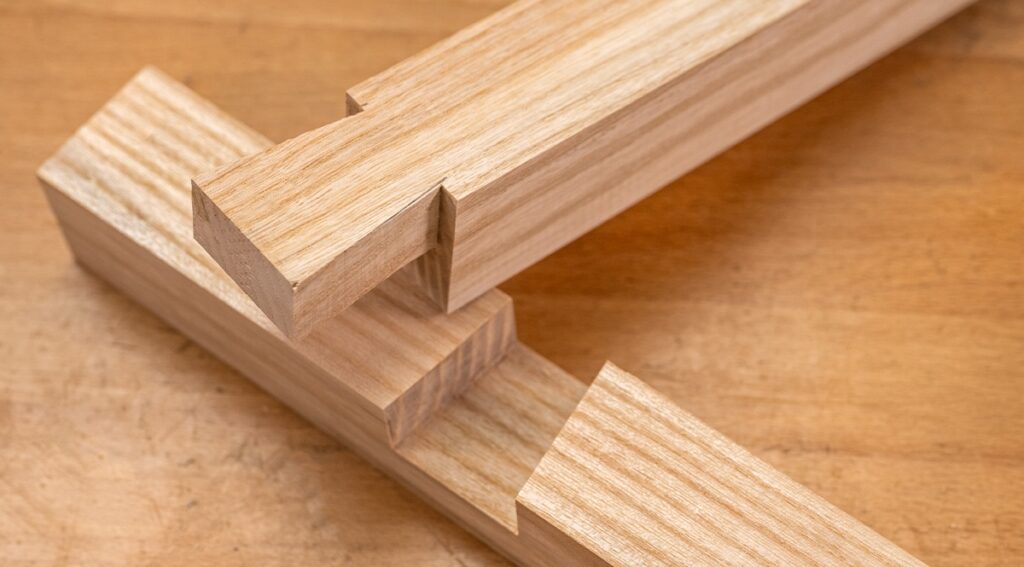

12. Half Lap Joint

A half-lap joint is created by removing material equal to half the thickness of each piece, allowing the two pieces to fit together flush.

While this makes a neat connection, it also weakens the joint. To strengthen it, you can use glue or mechanical fasteners.

The joint is strongest when located in the middle of a board, whereas placing it at the end—called an end lap—makes it considerably weaker. Half-lap joints are commonly used in both furniture making and structural framing.

Reinforced/Accessory Joints

These joints incorporate additional parts for strength, alignment, or visual appeal.

13. Dowel Joint

A dowel joint is a reinforced butt joint using hidden dowels for alignment and strength, and can be stronger than nailed or screwed butt joints when properly glued.

Holes are drilled into the wood, and glued dowels connect the pieces. This joint is often used in furniture, mirrors, and picture frames.

14. Tongue-and-Groove Joint

A tongue-and-groove joint is commonly used in flooring and wood paneling. One board has a tongue that fits into the groove of the adjoining board, creating a snug connection. While moderately strong on its own, the joint can be reinforced with glue or nails for added stability.

15. Biscuit Joint

A biscuit joint is similar to a dowel joint but uses a hidden compressed beechwood biscuit to add strength and glue surface. No screws or staples are needed.

The biscuit is inserted into slits in the wood with glue, and as it absorbs moisture, it swells to create a tighter bond. This medium-strength joint is commonly used in furniture making, especially for joining boards to form tabletops.
